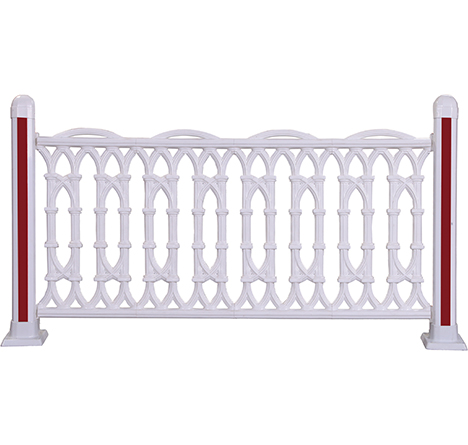

BPC 1516 Composite Plastic Fence
BPC-1516 MODEL FENCE SPECIFICATION
Product Name : Composite plastic fence with aluminum component
Usage Areas : Park – Garden retaining walls, Roadside, Medium refuge separation, Children playground around, Picnic areas, Seaside separation, etc. for
Production Process : Plastic fences are produced from injection-resistant plastic raw material. Due to the natural nature of the plastic, it is resistant to corrosion, discoloration, impacts, cold and heat. Aluminum profiles do not require painting for a long time since they are painted with static paint..
Product Parts;
1-MODULE 1A : Module with plastic cap (Plastic)
2- MODULE 8-9 : Steel mounting stud (steel)
3- MODULE 4 : Plastic Head Plug (Plastic)
4- MODULE 3 : Plastic middle plug (Plastic)
5- MODULE 10 : Plastic stud nut (Plastic)
6- MODULE 6 : Pillar Profile (Aluminum)
7- MODULE 5 : Aluminum casting base (Casting)
8- MODULE 11 : Sewing head (Plastic)
9- MODULE 7 : Sewing channel cover (Aluminum)
10- MODULE 7 : Strut channel cover short (Aluminum)
11-MODULE 13 : Super Plastic imported dowel (Plastic)
12- MODULE 12 : 5 * 8 steel screw (Steel)
13- MODULE 14 : Steel screw with countersunk head (Steel)
Technical specifications
1-MODULE 1A: Module with plastic cap; High density, polyethylene (PE) raw material, flame retardant and fading chemicals are placed in, 25 cm in the body, produced by injection method fences are passed through the steel stud channels, 1 meter fence or desired distances are obtained according to the project. Wall thickness 16.1mm, width 1000 mm, height 484 mm and 3460 gr weight.
2- MODULE 8-9: Steel mounting stud: It is used to bring the bodies together at certain distances and gives the middle closure strength. Made of M 12 worm thread steel, galvanized, 1040 mm long and weighing 710gr
3- MODULE 4: Plastic head plug; Plastic modules are placed between the stud nut and the module. It prevents the plastic module from flexing and gives an aesthetic appearance. 20mm * 10mm ellipse shaped hole to cross the M12 screw in the middle, weight is 3 g.
4- MODULE 3 – Plastic middle plug; It prevents the flexing and joining of the plastic modules and the steel stud and provides strength. 20mm * 15mm ellipse shaped hole through the middle M12 screw, weight 5 gr.
5- MODULE 10 – Plastic stud nut; It is mounted on both ends of the steel studs, allowing the assembled fence to be mounted on the upright profile. 24 mm in diameter and 44 mm in width with M12 bolt holes in the middle.
6- MODULE 6 – Profile of the pillar; It is made of aluminum and painted in the oven with static powder paint. It is mounted to the concrete floor by means of tripod screws. Diameter 49,8mm length 380 mm, weight 270 g / mt.
7- MODULE 5 – Aluminum casting base; It is manufactured from aluminum casting and painted in the oven with static powder paint. Thanks to the holes on the fence is fixed to the ground at certain intervals. It has a base width of 103.6 * 103.6 mm, a height of 55 mm and a weight of 335 grams with 4 outer bolt holes and 4 inner bolt holes.
8- MODULE 11- Sewing head; It closes the top of the uprights and prevents the channel covers from coming out. Provides aesthetic appearance 62mm in diameter, 60mm in height and weighs 25gr.
9- MODULE 7 – Sewing channel cover; It serves to close the unused channels on the posts aesthetically. It is 23.3mm wide, 7.7mm wide and 550mm long. It weighs 130gr / m.
10- Module 7 – Sewing channel cover short; It is made of aluminum and painted in the oven with static powder paint. It serves to close the unused channels on the posts aesthetically. It is 23.3mm wide, 7.7mm wide and 45mm long. It weighs 130gr / m.
11-MODUL13 – Super Plastic imported dowel; Imported dowel made of M8 * 65 plastic.
12- MODULE 12 – 5 * 8 steel screws; M8 * 75 key head steel galvanized screw casting base is used for mounting on the floor.
13- MODULE 14 – Steel screw with countersunk head; YSB type bolt. It is used to mount the plastic pillar head to the aluminum pillar profile.
INSTALLATION
1- Plastic modules of 25 cm are connected to the steel studs by inserting them through the channels of the modules and assembled to the channels in the profile with plastic nuts.
2- 360 degree direction can be provided to the fence by means of channels located on the four sides of the post. In this way, the fence can be turned in four different directions.
3- Plastic fences are fixed to the aluminum profile by means of galvanized steel and smart screws.
4- Aluminum struts are mounted to hard ground with aluminum casting base. 10 cm galvanized steel dowel is used for mounting the cast aluminum base on the ground.
5- The triple steel dowel screws used in the mounting of the aluminum casting base on the hard ground are closed with a plastic cover.
6- Plastic fences should be tiltable up to 45 °.

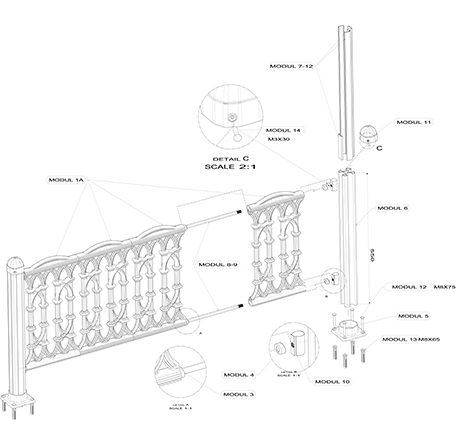

Note; The technical drawings are attached
